OIML Single Point Load Cells AME-B

Short Description:



OIML Single Point Platform Scale Load Cells AME-B

OIML approval,Application for small Platform Scale, Adopting high sensitivity Strain gauges,Made of high quality aluminum alloy with high strength, the device has sturdy structure which is available in the capacity from 30kg to 300 kg. With the anodic oxidation treatment, it is resistant to corrosion, water and oxygen which is suitable for all kinds of environment.With the scientific and ergonomic design, it is convenient to use which can greatly save time, energy and money by improving the working efficiency. As well, it is available to provide the stable and excellent performance. It is a endurable product with extended service time that it can be used for a long period. And it is easy to maintain and clean, greatly prolonging its life span.


Product Detail

FAQ

Product Tags

Specification

Application :

Platform Scale, Bench Scales

Model :

AME-B

Capacity

15, 20, 30, 35, 50, 60,100,150, 200, 300, 500KG,

Output Sensitivity

2.0± 0.2 MV/V

Accuracy Class

OIML C3

Creep(30 min)

+166 ppm

Zero Balance

+3%Emax

TC ZERO

+17.5ppm/℃

TC SPAN

+20~+40℃, +17.5ppm/℃



-10~+20℃, +11.67ppm/℃

Input Impedance

404 ± 15Ω

output Impedance

350 ± 3Ω

Insulation Resistance

≥2000 MΩ ( 50VDC)

Recommend Excitation Voltage

10V

Maximum Excitation Voltage

15V

Compensated Temperature Range

-10~+40℃

Operating Temperature  Range

-20~+50℃

Safe Overload

150 %Emax

Ultimate Overload

300 %Emax

Protection Grade

IP65

Material

Aluminium

Cable Length

Φ5× 1.80 M

Recommended Platter Size

400 × 400 MM

Recommended Installation Torque

10N.m

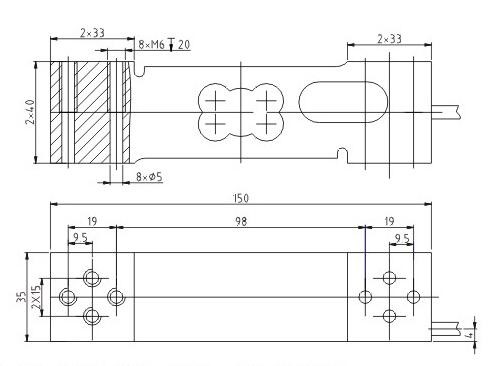

AME-B DRAWING
wiring diagram
