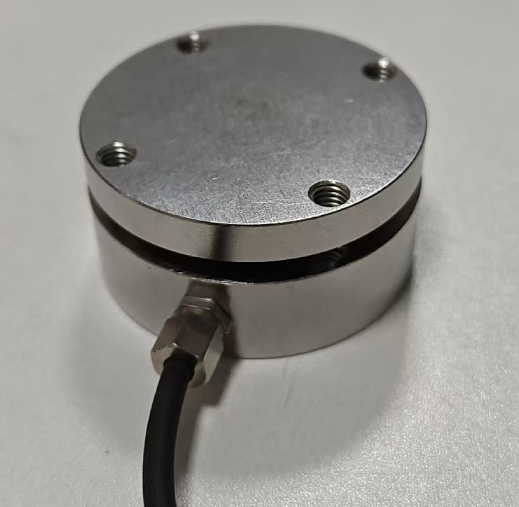

Low Profile Compression Load Cells Sensor TBY
Short Description:
Low Profile Compression Load Cells Sensor TBY
Feature:
Stainless Steel 17-4PH
Pressure Bearing
Application:
Widely used in riveting machines, plugging force testers, welding machines, hot and cold presses, keyboard button feel testers and automation equipment.
Field of force to be measured
Anti-bending spring connector, effectively protect the cable

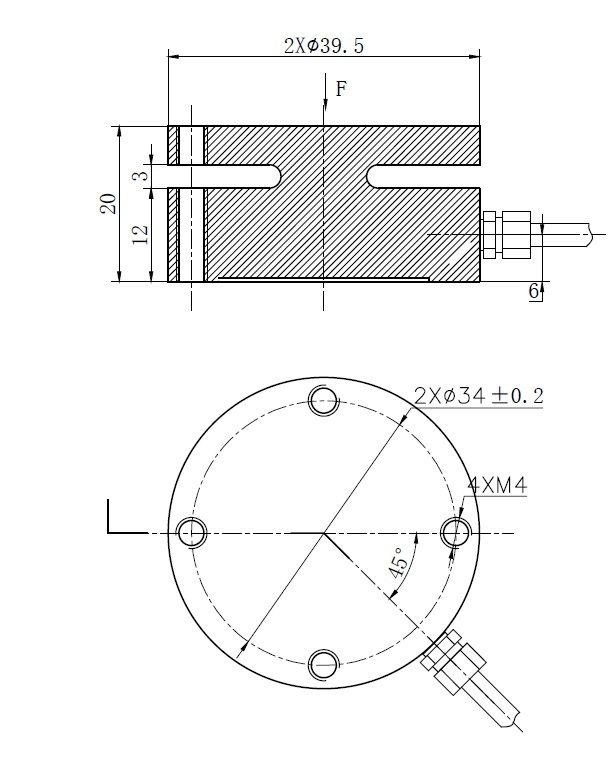

Specification
| Model : | TBY |
| Application | Force control for press-fitting products in the automation field, and force measurement on the equipment |
| Capacity | 30kg, 50kg |
| Output Sensitivity | 1.5 ± 20% mV/V |
| Non-linearity | 0.3 % F.S |
| Hysteresis | 0.3 % F.S |
| Repeatability | 0.1 % F.S |
| Creep(30mins) | 0.1 % F.S |
| Temperature Effect on Output | 0.05%F.S/10℃ |
| Temperature Effect on Zero | 0.05%F.S/10℃ |
| Input Impedance | 750 ± 50 Ω |
| Output Impedance | 702 Ω |
| Insulation Resistance | ≥5000 MΩ/100VDC |
| Temperature Range Compensated | -10～+60℃ |
| Operating Temperature Range | -20～+80℃ |
| Recommend Excitation Voltage | 5～15V |
| Maximum Excitation Voltage | 20V |
| Safe Overload | 150 %F.S |
| Ultimate Overload | 200 %F.S |
| Protection Grade | IP67 |
| Material | Stainless Steel |
| Cable Length | Φ3×3M |
| Single Gross Weight | 0.1kgs |
