Stainless Steel Single Point Bench Scale Load Cells SMD-SS

Short Description:



Stainless Steel Single Point Bench Scale Load Cells SMD-SS

OIML Approval,Appication for small Bench Scale, Adopting high sensitivity strain gauges,Made of high quality aluminum alloy with high strength, the device has sturdy structure which is available in the capacity from 40 to 800kg. With the anodic oxidation treatment, it is resistant to corrosion, water and oxygen which is suitable for all kinds of environment.With the scientific and ergonomic design, it is convenient to use which can greatly save time, energy and money by improving the working efficiency. As well, it is available to provide the stable and excellent performance.It is a endurable product with extended service time that it can be used for a long period. And it is easy to maintain and clean, greatly prolonging its life span.


Product Detail

FAQ

Product Tags

Specification

Application :

Platform Scale, All kinds of compression testing devices

Model :

SMD-SS

Capacity

40,45,50,60,65,100,150,200,250,300,500,800kg

Output Sensitivity

2.0± 0.2 MV/V

Accuracy Class

OIML C3(approving)

Creep(30 min)

+166 ppm

Zero Balance

+3%Emax

TC ZERO

+17.5ppm/℃

TC SPAN

+20~+40℃, +17.5ppm/℃



-10~+20℃, +11.67ppm/℃

Input Impedance

404 ± 15Ω

output Impedance

382 ± 3Ω

Insulation Resistance

≥2000 MΩ ( 50VDC)

Recommend Excitation Voltage

10V

Maximum Excitation Voltage

15V

Operating Temperature  Range

-20~+50℃

Safe Overload

150 %Emax

Ultimate Overload

300 %Emax

Protection Grade

IP65

Material

Stainless Steel

Cable Length

Φ5× 3M

Recommended Platter Size

500 × 500 MM

Recommended Installation Torque

25N.m

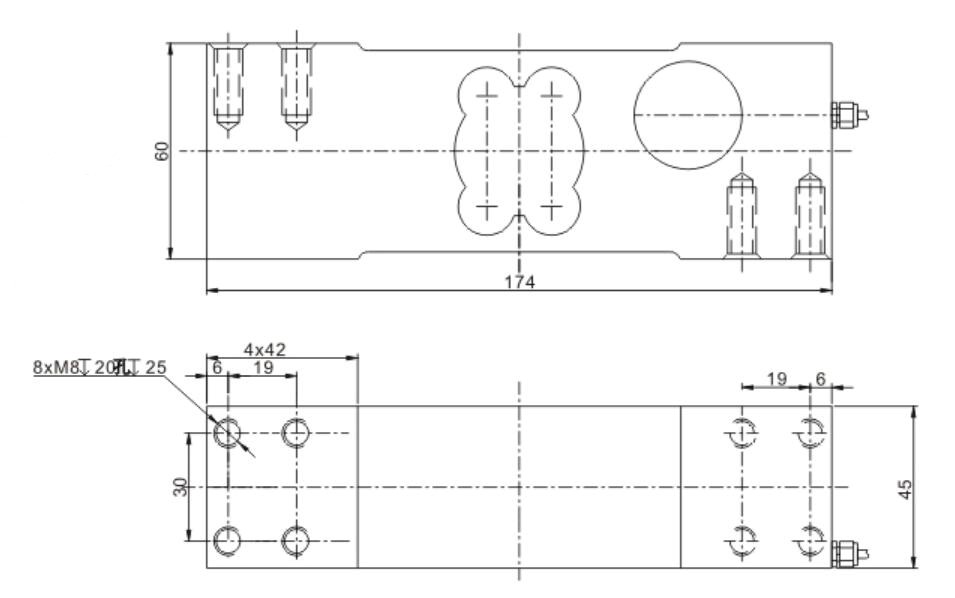

SMD-SS 00
003
