Water Pressure Sensor PS-1500

Short Description:


Water Pressure Sensor PS-1500
Product Features:
Advanced ceramic core
High reliability and high stability
Good medium compatibility
Highly corrosion resistant SS housing
Industrial process and control
Air compressor, refrigeration
Pumping stations
Water treatment system

Product Detail


Product Tags

Product Description
The water pressure sensor PS-1500 is refined by a special process. PS-1500 water pressure sensor sensitive detection material has the advantages of high elasticity, corrosion resistance, abrasion resistance, strong shock and vibration resistance, and good thermal stability. Water pumps, urban intelligent pipe networks, air compressors, refrigeration, water treatment industries, industrial process detection and control.
Technical Parameters

Measuring medium Water
Pressure range (bar) 10, 16, 25
Signal output 0.5~4.5VDC, 4~20mA
Signal line specifications 3 Wire, 2 Wire
Supply voltage 5VDC 9~30VDC
Precision ±1%FS
Total error band ±3%FS
Operating temperature -40~+135℃
Storage temperature -40~+150℃
Overload pressure 200%FS
Breaking pressure 300%FS
Vibration 11g(50~2000Hz)
Supply current 10mA (maximum)
Output response 3mS
Service life 5 million full-scale cycles
Short circuit protection Have

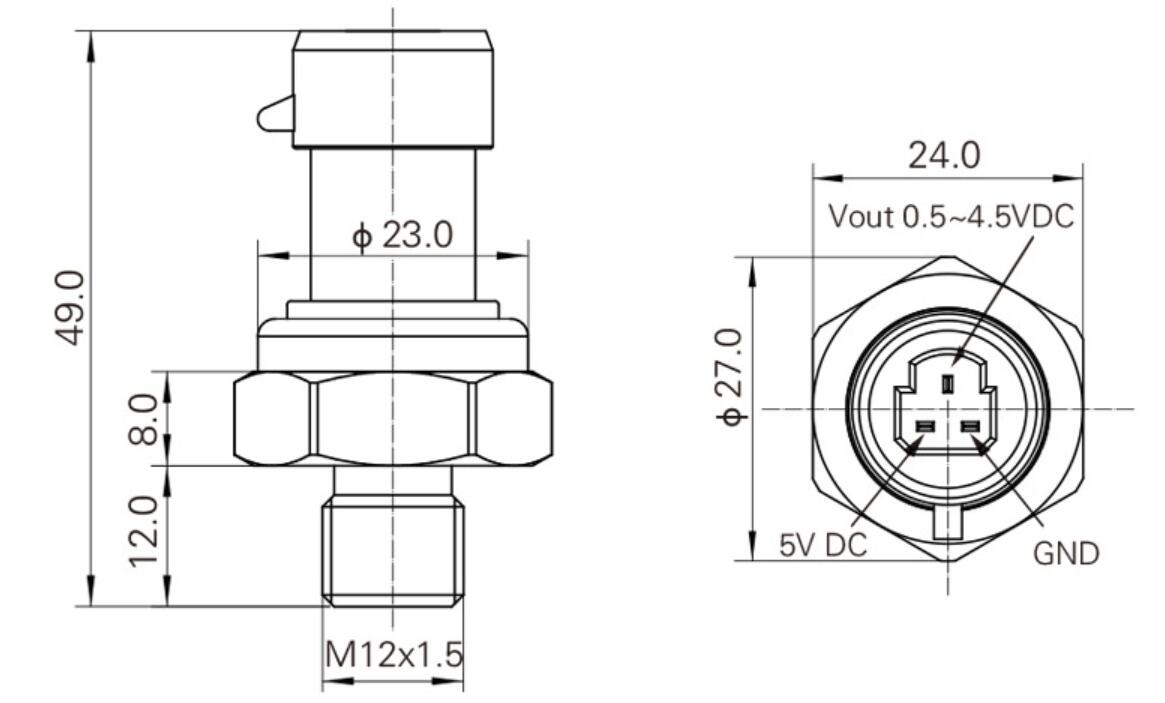

Pressure port G1/4,NPT1/4,M20x1.5,M12x1.5,NPT1/8
Electrical connections Packard connector
Load Resistance 10KΩ (typical)
Protection level IP65
Overvoltage protection 16VDC (5V power supply)
Material 304 stainless steel
Reverse voltage -14VDC (5V power supply)
