Low Power Pressure Sensor PS-1002
Short Description:
Low Power Pressure Sensor PS-1002
Product Features:
Low voltage, low power consumption, easy to install and use; advanced digital
temperature compensation function, wide operating temperature range; high precision, high frequency
response, good long-term stability; impact resistance, fatigue resistance, and high reliability.
Applications: Industrial process detection and control; pumping stations and water treatment systems;
automated detection systems; industrial machinery manufacturing; hydraulic and pneumatic control
systems.
Features
With low voltage, low power consumption, easy installation and use
Excellent resistance to corrosion, wear and vibration
Wide temperature operating range, compact size
High product precision and good long-term stability
Technical Parameters
| Pressure type | Gauge pressure, absolute pressure |
| Pressure range (bar) | -1~0~0.2...600 |
| Signal output | RS485 |
| Supply voltage | 3~4.2V DC, suitable for battery power supply |
| Current consumption | ≤2.5mA |
| Stand-by current | ≤0.2mA |
| Accuracy | ±0.3 %FS ±0.5 %FS |
| Temperature compensation | -20~+85℃ |
| Operating temperature | -40~+85℃ |
| Long-term stability (1 year) | ±0.2 %FS |
| Overload pressure | 200%FS |
| Destruction pressure | 300%FS |
| Protection class | IP65 |
| Material | 304 stainless steel |
| Electrical connections | Direct Lead, Hessman, Non-Threaded Explosion Proof Connector (IP67) |
| Pressure port | M20X1.5, G1/4, NPT1/4, (others can be customized on request) |

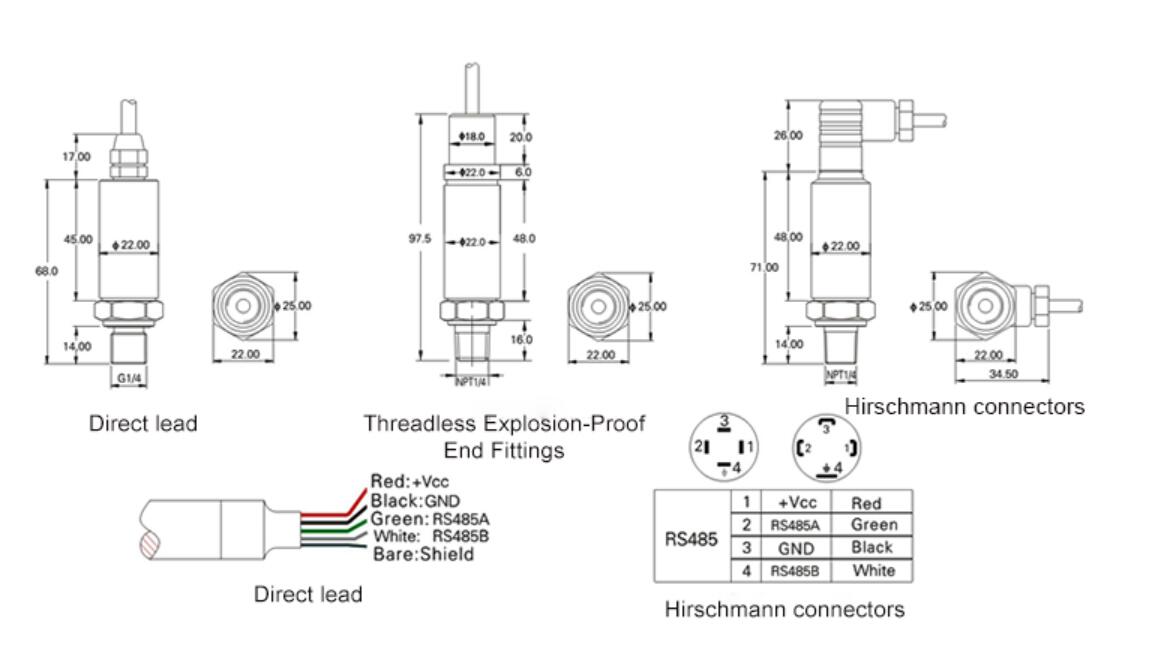

Drawing:
