Soil Five-in-one Sensor ST-2006D
Short Description:
Soil Five-in-one Sensor ST-2006D
Product Features:
Five-in-one sensor
High data transmission efficiency
High measurement accuracy
Excellent sealing, corrosive resistance
Measure temperature, humidity and salt content at different depths
Applications:
Greenhouses, Soil testing, Agricultural irrigation, Field soil, Grass pastures, Meteorological monitoring
Plant cultivation, Flowers and vegetables, Scientific experiments
Technical Parameters
|
Measurement parameters |
Soil temperature, soil volume water content,Soil conductivity (EC value), soil salinity, soil TDS |
|
Temperature range |
−30~85℃ |
|
Water content range |
0~100% |
|
Conductivity range |
0~20mS/cm |
|
Supply voltage |
12~24VDC |
|
Soil salinity |
0~10000mg/kg |
|
Soil TDS |
0~10000mg/kg |
|
Electrical connections |
Direct lead |
|
Scope of work |
−40℃~80℃ |
|
Stable schedule |
3 seconds after power on |
|
Response time |
≤1 second |
|
Sealing material |
ABS engineering plastic, epoxy resin |
|
Probe Length |
55mm |
|
Probe diameter |
3mm |
|
Measurement accuracy |
Temperature: ±0.5℃; Humidity: ±3% (0~50%), ±5% (51~100); |
|
Resolution |
Temperature: ±0.1℃; Humidity: ±0.1% (0~50%), ±1% (51~100); |
|
Output signal |
Rs485 (standard Modbus-RTU protocol, device default address: 01) |

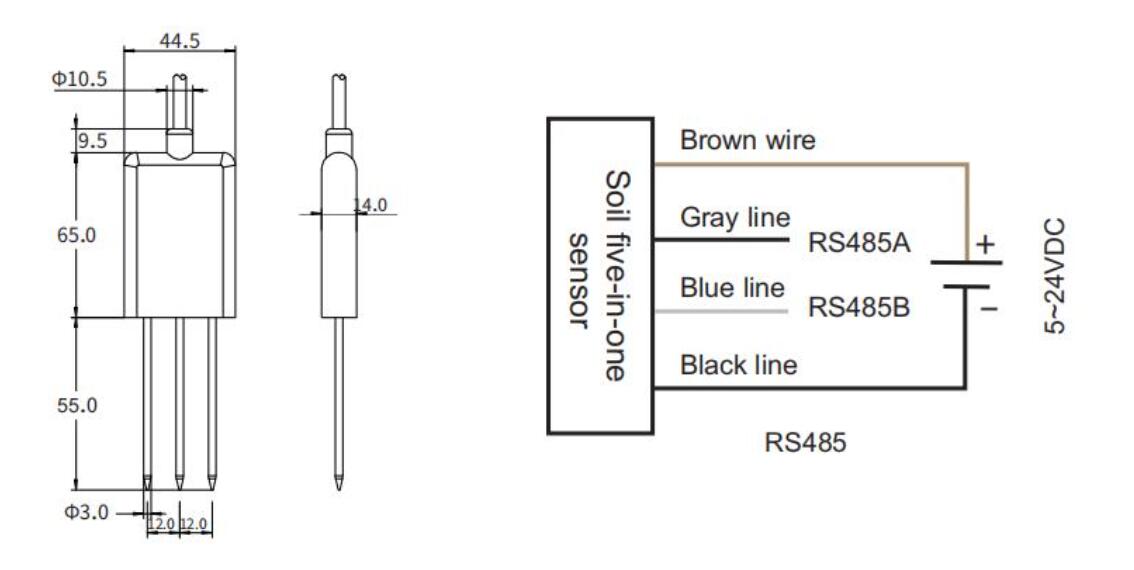

Product appearance and wiring method
