Soil Conductivity Sensor ST-2006C

Short Description:

Soil Conductivity Sensor ST-2006C
Product Features:
Water-saving agricultural irrigation, weather monitoring
Greenhouses, flowers and vegetables, grass pastures, soil testing
Fields that need to measure soil moisture such as plant cultivation and scientific experiments
Product Description
ST-2006C The soil conductivity sensor uses a graphite electrode to convert the analog or digital signal of the soil conductivity through a transmitter. After the conductivity sensor is buried in the soil, the conductivity of the soluble salt ions in the soil solution is directly measured. Graphite electrodes have the characteristics of stable performance and high sensitivity, and have a wide range of applications, especially for high conductivity, so they are very suitable for the determination of soil conduct
Application
Water-saving agricultural irrigation, weather monitoring
Greenhouses, flowers and vegetables, grass pastures, soil testing
Fields that need to measure soil moisture such as plant cultivation and scientific experiments




Product Detail

FAQ

Product Tags

Technical Parameters

Temperature range

0~10 mS/cm

Measurement accuracy

±3%

Resolution

10μS/cm

Supply voltage

12~24V DC

Output signal

Rs485/4-20mA/0-5VDC/0-10VDC

The scope of work

-40~80℃

Conductivity electrode material

Graphite

Stable schedule

1 second after power on

Response time

<1 second

Sealing material

ABS engineering plastic, epoxy resin

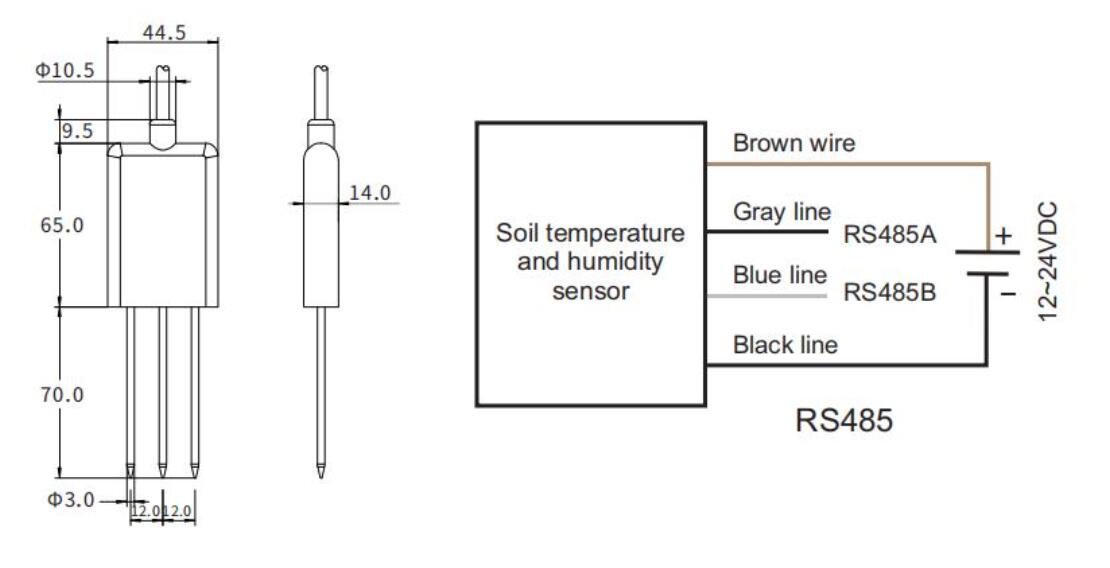

Product Appearance and Wiring Method

ST-2006C DRAWING
