Platform Scale Weighing Indicator XK3190-T4E

Short Description:



Platform Scale Weighing Indicator XK3190-T4E
Application:
Electronic Floor scale, Bench Scale Logistics Scale, Pet Scale, Load cells etc.
Technical Parameters
Display:6-Digit 20mm LED or 25mm LCD backlight
Accuracy Class: OIML C3
AD Convert : ∑-△,24 bit Input Voltage:-7mV-12.8mV
Resolving: display 15000, internal code 1,000,000
Minimum resolution: 1μV/e
Excitation Voltage:DC3.3V
Load cell interface:4-wire, 1-4 350Ω analog load cells
Power supply: AC110/220V 50/60HZ or built-in 4V/4Ah Lead acid battery
Work environment : -10℃-+40℃,≤85%RH
Battery enduring life:50 hours for continuously use ( with 4 350Ω analog load cells )


Product Detail

FAQ

Product Tags

Application:
Electronic Floor scale, Bench Scale Logistics Scale, Pet Scale, Load cells etc.
Technical Parameters
Display:6-Digit 20mm LED or 25mm LCD backlight
Accuracy Class: OIML C3
AD Convert : ∑-△,24 bit Input Voltage:-7mV-12.8mV
Resolving: display 15000, internal code 1,000,000
Minimum resolution: 1μV/e
Excitation Voltage:DC3.3V
Load cell interface:4-wire, 1-4 350Ω analog load cells
Power supply: AC110/220V 50/60HZ or built-in 4V/4Ah Lead acid battery
Work environment : -10℃-+40℃,≤85%RH
Battery enduring life:50 hours for continuously use ( with 4 350Ω analog load cells )
Options:
Second display interface: serial RS232
Communication interface:RS232, baud rate 600-9600(optional)
Printing interface: shared with serial interface, can be connected to serial printer (optional: desktop printer)
Bluetooth
Production Functions & Dimensions:

T4 DRAWING 01

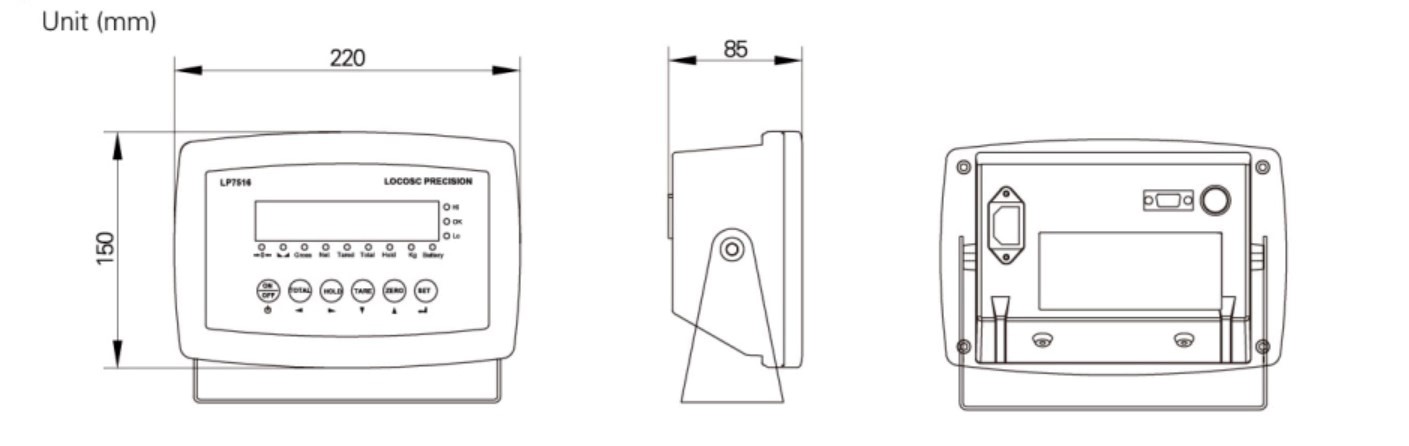

T4 DRAWING 02
