Large Screen LCD Weighing Indicator XK3190-T5

Short Description:



Large Screen LCD Weighing Indicator XK3190-T5
Technical Parameters:
Display:6-digit 500mm LED or LCD with backlight
Accuracy class: OIML C3 Class
AD convert:∑-△,24 bit
Input voltage:-6mV-19.5mV
Resolving: display 15,000, internal code 1,000,000
Minimum resolution:1μV/e
Excitation voltage:DC3.3V
Load cell interface:1-4pcs 350Ω analog load cells
Power supply: AC110/220V 50/60HZ or built-in 4V/4Ah lead acid battery
Work temperature:-10℃-+40℃
Humidity: 85%RH
Battery enduring life:40 hours for continuously use(with 4pcs 350Ω analog load cells)


Product Detail

FAQ

Product Tags

Technical Parameters:
Display:6-digit 500mm LED or LCD with backlight
Accuracy class: OIML C3 Class
AD convert:∑-△,24 bit
Input voltage:-6mV-19.5mV
Resolving: display 15,000, internal code 1,000,000
Minimum resolution:1μV/e
Excitation voltage:DC3.3V
Load cell interface:1-4pcs 350Ω analog load cells
Power supply: AC110/220V 50/60HZ or built-in 4V/4Ah lead acid battery
Work temperature:-10℃-+40℃
Humidity: 85%RH
Battery enduring life:40 hours for continuously use(with 4pcs 350Ω analog load cells)
Options:
Second display interface: serial RS232
Communication interface: RS232/RS485, baud rate 600/1200/2400/4800/9600
Printing interface: shared with serial interface, can be connected to serial printer(optional: desktop printer)
Bluetooth
Application:
Electronic Floor Scale, Bench scale , Logistics Scale , Pet Scale , Load Cells etc
Production Functions &Dimensions(mm)

T4 DRAWING 01

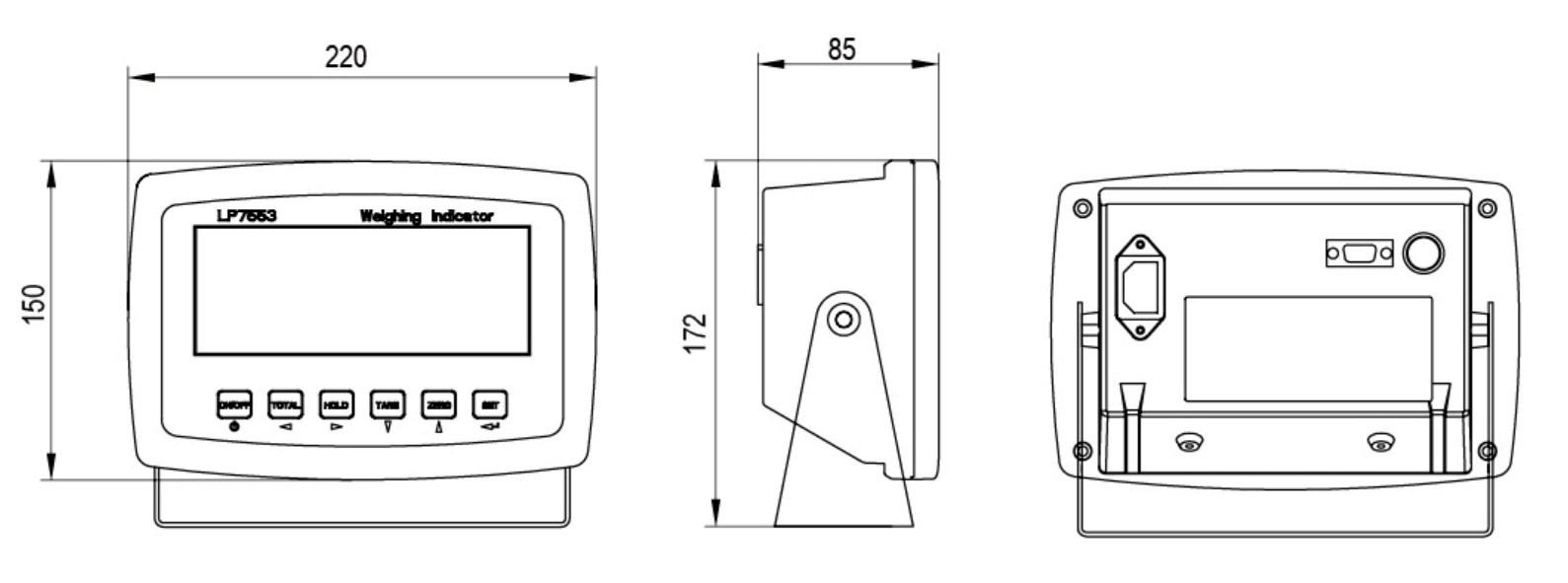

T5 DRAWING 02
