Single Point Platform Scale Load Cells ANK-B

Short Description:



Single Point Platform Scale Load Cells ANK-B

Application for small platform scale.Adopting high sensitivity Strain gauges,Made of high quality aluminum alloy with high strength, the device has sturdy structure which is available in the capacity from 50kg to 300 kg. With the anodic oxidation treatment, it is resistant to corrosion, water and oxygen which is suitable for all kinds of environment.With the scientific and ergonomic design, it is convenient to use which can greatly save time, energy and money by improving the working efficiency. As well, it is available to provide the stable and excellent performance.It is a endurable product with extended service time that it can be used for a long period. And it is easy to maintain and clean, greatly prolonging its life span.


Product Detail

FAQ

Product Tags

Specification

Application : Platform Scales
Model : ANK-B
Capacity 100, 200, 300, 350, 500KG
Output Sensitivity 2.0± 0.2  mV/V
Nonlinearity 0.02 %F.S
Repeatability 0.01 %F.S
Hysteresis 0.02 %F.S
Creep(30 min) 0.02 %F.S/30 Mins
Temperature effect on Sensitivity 0.0016 %F.S/ ℃
Temperature effect on Zero 0.003 %F.S/ ℃
Zero Balance ±1.0 %F.S
Input Impedance 402 ± 6 Ω
output Impedance 350 ± 3Ω
Insulation Resistance 5000 MΩ
Recommend Excitation Voltage 10V
Maximum Excitation Voltage 15V
Comensated Temperature Range -10~+55℃
Operating Temperature  Range -35~+80℃
Safe Overload 150 %F.S
Ultimate Overload 200 %F.S
Protection Grade IP66
Material Alluminium
Cable Length φ5.7× 2 M
Recommended Platter Size 500 × 600 MM

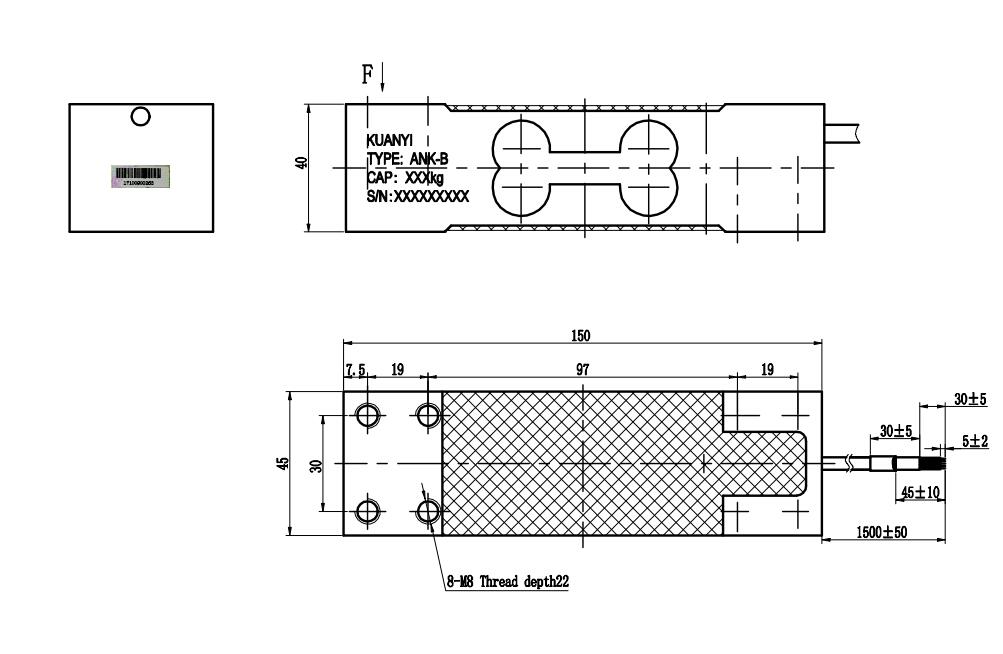

ANK-B Drawing 02
003
