Wireless Portable Truck Axle Weighing Scale GCF-8WB

Short Description:



Wireless Portable Truck Axle Weighing Scale GCF-8WB
It is widely used by traffic management and road administration departments to check the overload and over-transportation of cars on highways, providing a strong basis for traffic management and road administration departments.
It was then used for static weighing of low-value materials in major factories, mines, docks, freight yards, construction sites and other occasions.


Product Detail

FAQ

Product Tags

Platform parameters

Pad Size(mm) 500*400*29 700*430*29 800*430*39
Ramp Size(mm) 500*300*29 700*330*29 800*350*39
Pad Packing  Size(mm) 700*620*120 920*610*120 1080*610*120
Ramp Packing Size(mm) 540*380*90 730*380*90 830*400*100
Indicator Packing Size(mm) 500*350*240 500*350*240 500*350*240
Indicator weight 9KG 9KG 9KG
Pad and packaging weight(one piece)   20KG 321KG 44KG
Ramp weight(two pieces) 10KG 18 KG 24 KG
Single pad capacity 10T 15T 25T
Allowed by axle load 20T 30T 50T
Safe overload 125%
Weighing pad description Overall integrated patch type, with moderate accuracy, moderate weight, moderate installation height, with rubber ramps

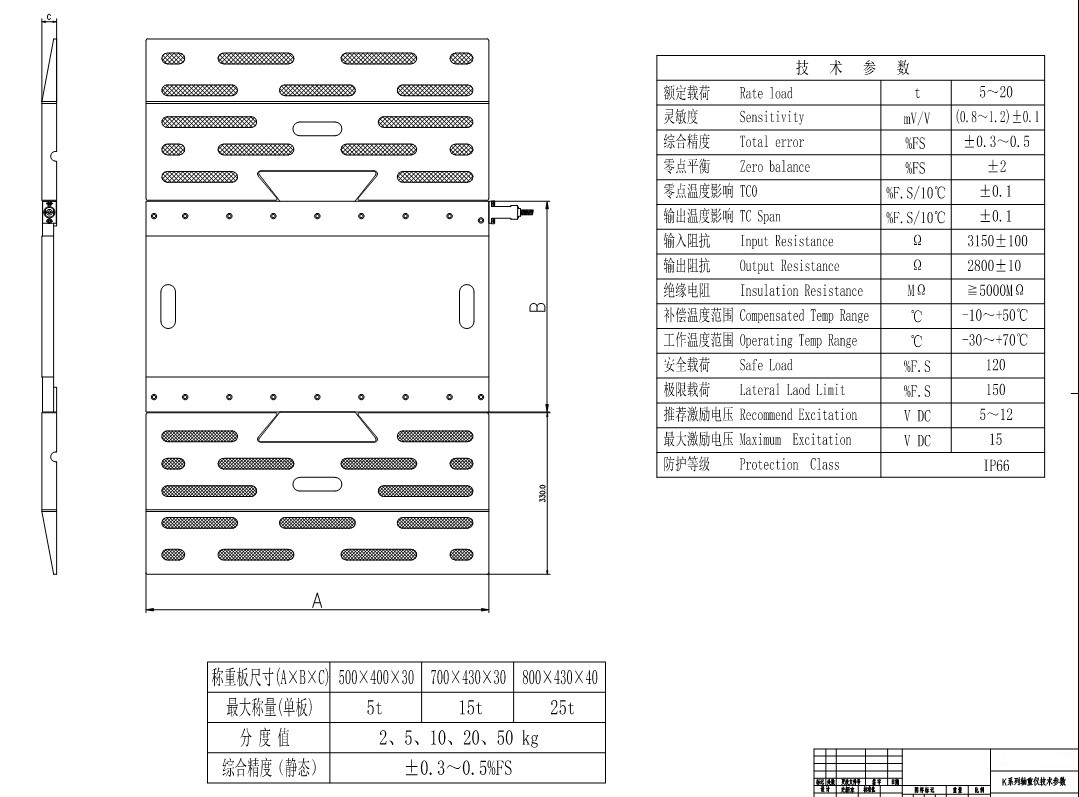

 GCF-12WB DRAWING 01

The following instruments can be selected according to the needs of use:
1、122YD wired dynamic indicator(One indicator with two pads)
1.1There are two types of single channel and dual channel, of which the dual channel type can detect the vehicle's partial load coefficient;
1.2 Very good dynamic detection performance and high accuracy;
1.3 Backlit dot matrix LCD display, clearly visible during the day and night;
1.4 Full Chinese character display and printing, the user interface is extremely friendly;
1.5 Convenient input of complete vehicle number including province and city names;
1.6 Can enter the name of the testing unit and the name of the inspector;
1.7 Built-in Chinese character printer to print complete inspection vouchers;
1.8 Automatically determine whether the limit is exceeded; can store test records of 1300 vehicles;
1.9 Complete search and statistics functions;
1.10 Dual-use, real-time display, real-time display of battery capacity, battery can maintain 40 hours of work, and automatic shut-down;
1.11 Can use car power (cigarette lighter) to power and charge;
1.12 The testing instrument can work independently and has a complete interface, which can be uploaded to the computer at any time monitoring data.
