Stainless Steel or Carbon Steel Platform Scale Weighing Indicator XK3190-T6
Short Description:
Stainless Steel or Carbon Steel Platform Scale Weighing Indicator XK3190-T6
Application:
Electronic Floor scale, Hopper Scale, Pet Scale, Load cells etc.
Technical Parameters：
Display:6-Digit 20mm LED or 25mm LCD backlight
Accuracy Class: OIML C3
AD Convert : ∑－△,24 bit
Input Voltage:-10mV-19.5mV
Resolving: display 15000, internal code 1,000,000
Minimum resolution: 1μV/e
Excitation Voltage:DC5V
Load cell interface:4-wire, 1-4 350Ω analog load cells
Power supply: AC110/220V 50/60HZ or built-in 4V/4Ah Lead acid battery
Work environment : -10℃-+40℃,≤85%RH
Battery enduring life:35 hours for continuously use ( with 4 350Ω analog load cells )
Application:
Electronic Floor scale, Hopper Scale, Pet Scale, Load cells etc.
Technical Parameters：
Display:6-Digit 20mm LED or 25mm LCD backlight
Accuracy Class: OIML C3
AD Convert : ∑－△,24 bit
Input Voltage:-10mV-19.5mV
Resolving: display 15000, internal code 1,000,000
Minimum resolution: 1μV/e
Excitation Voltage:DC5V
Load cell interface:4-wire, 1-4 350Ω analog load cells
Power supply: AC110/220V 50/60HZ or built-in 4V/4Ah Lead acid battery
Work environment : -10℃-+40℃,≤85%RH
Battery enduring life:35 hours for continuously use ( with 4 350Ω analog load cells )

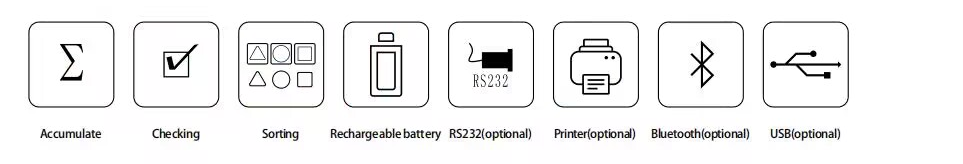

Options:
Second display interface: serial RS232
Communication interface:RS232/RS485, baud rate 600-9600(optional)
Printing interface: shared with serial interface, can be connected to serial printer (optional: desktop printer)
